Introduction to fishbone diagrams
What is a fishbone diagram?
A fishbone diagram, also known as an Ishikawa diagram or a cause-and-effect diagram, is a fundamental tool in quality management. Named after its creator, Kaoru Ishikawa, this diagram helps in identifying root causes of a problem by organising potential causes into useful categories. The visual structure resembles a fish skeleton, with the problem statement at the ‘head’ and contributing factors branching off as ‘bones.’ This structured approach facilitates effective brainstorming sessions, enabling teams to explore a wide range of possible causes systematically.
Importance in problem-solving
Fishbone diagrams are vital in quality management and continuous improvement efforts across numerous industries. They are one of the Seven Basic Quality Tools, essential for identifying and resolving issues efficiently. The diagrams help teams develop specific solutions and are particularly valuable in
- Manufacturing sectors use them to identify and address production process inefficiencies
- Healthcare organisations use them to improve patient care by analysing procedural issues
- Service industries use them to enhance customer satisfaction by resolving service concerns.
In essence, fishbone diagrams not only aid in identifying the root causes of problems but also promote a culture of systematic analysis and continuous improvement. By applying this method, organisations can ensure that they address issues comprehensively, leading to more effective and lasting solutions.
Understanding fishbone diagram components
Basic structure of a fishbone diagram
A fishbone diagram is a visual tool that helps teams identify and categorise the root causes of a problem. The diagram resembles the skeleton of a fish, making it intuitive and straightforward to use. At the ‘head’ of the diagram, you place the problem statement—the issue that needs addressing. This serves as the focal point of the analysis.
Branching off from the spine are the ‘bones,’ which represent potential causes of the problem. These are organised into various categories, allowing teams to explore different angles of the issue systematically. Each ‘bone’ signifies a distinct cause or factor, and further branching can detail sub-causes. This structured layout not only clarifies complex problems but also encourages comprehensive brainstorming and analysis.
Categories in fishbone diagrams
Standard categories
Fishbone diagrams often use standard categories to organise potential causes, especially in quality management and engineering contexts. These categories help ensure a comprehensive analysis by covering different aspects of the problem. Commonly used categories include:
- Methods: Processes or procedures that might contribute to the issue
- Materials: Raw materials or components involved in the process
- Machines: Equipment or tools used, which might have faults or limitations
- Manpower: Human factors, such as skills, training, or motivation
- Measurements: Data or metrics that might be inaccurate or misleading
- Environment: External conditions or settings that could affect outcomes.
These categories offer teams a structured approach to explore potential causes.
Custom categories
While standard categories are useful, organisations often benefit from tailoring categories to their specific needs or industries. Custom categories allow teams to focus on the unique aspects of their problem domain. For instance, a software development team might include categories like user experience or software architecture. Meanwhile, a retail business might focus on customer feedback or supply chain.
The flexibility to customise categories ensures that the fishbone diagram remains relevant and effective for any given context. By adapting the diagram to suit their specific needs, organisations can enhance the accuracy and usefulness of their analysis, leading to more targeted and effective solutions.
Fishbone diagram variations and procedures
Variations of the fishbone diagram
Fishbone diagrams come in several variations, each designed to suit specific analytical needs. These nuanced versions adapt the basic structure to address particular types of problems or sectors. For instance, some organisations may opt for a simple fishbone diagram without predetermined categories. This approach allows teams to define categories that are most relevant to their context, promoting flexibility in analysis.
Other variations may incorporate additional layers of complexity. For example, a complex fishbone diagram might include sub-categories or integrate quantitative data to enhance the depth of analysis. These variations are particularly useful in industries that require detailed scrutiny, such as engineering or pharmaceuticals. By tailoring the diagram to specific needs, teams can ensure a more precise and effective root cause analysis.
Step-by-step procedure for creating a fishbone diagram
Identifying the problem
The first step in creating a fishbone diagram is to clearly define the problem statement. This should be a concise description of the issue you are trying to address. A well-defined problem statement serves as the ‘head’ of the diagram and guides the entire analysis process.
Brainstorming causes
Once the problem is defined, the next step is to brainstorm potential causes. Encourage team collaboration to gather a wide range of possible factors. Use techniques such as mind mapping or group discussions to ensure all perspectives are considered. This comprehensive list of causes will form the ‘bones’ of your diagram.
Categorising causes
After brainstorming, organise the identified causes into relevant categories. These categories can be standard ones like Methods, Materials, and Manpower, or custom ones tailored to your specific context. Proper categorisation helps in visualising the problem from different angles and ensures no potential cause is overlooked.
Analysing and prioritising causes
The final step is to analyse and prioritise the causes. Evaluate each potential cause in terms of its impact on the problem. Use techniques such as voting or ranking to identify the most critical causes for further investigation. Focusing on these key factors will help in developing targeted and effective solutions.
Practical applications and case studies
Real-world applications of fishbone diagrams
Fishbone diagrams are widely used across various industries to identify and resolve complex issues. In manufacturing, these diagrams help pinpoint inefficiencies in production processes, leading to improved efficiency and reduced waste. By systematically analysing potential causes, manufacturers can address issues such as equipment malfunctions or material defects.
In the healthcare sector, fishbone diagrams are instrumental in enhancing patient safety and care quality. They allow healthcare professionals to identify factors contributing to medical errors or delays in treatment, leading to better patient outcomes.
In the service industry, companies employ fishbone diagrams to improve customer satisfaction. By analysing complaints and service delivery processes, businesses can identify root causes of customer dissatisfaction and implement effective solutions. This results in enhanced service quality and customer loyalty.
Case studies showcasing success
Several organisations have successfully employed fishbone diagrams to tackle complex challenges. A notable example is a manufacturing company that faced frequent production line stoppages. By using a fishbone diagram, the team identified multiple contributing factors, including outdated machinery and insufficient staff training. Addressing these issues led to a significant reduction in downtime and increased productivity.
In healthcare, a hospital used fishbone diagrams to analyse the root causes of high patient waiting times. The analysis revealed several factors, such as inefficient scheduling and understaffed departments. Implementing targeted solutions based on these findings resulted in reduced waiting times and improved patient satisfaction.
A service company dealing with high complaint rates used fishbone diagrams to investigate recurring issues. The analysis highlighted problems such as inadequate staff training and poor communication channels. By addressing these root causes, the company successfully reduced complaints and improved overall service quality. These case studies demonstrate the effectiveness of fishbone diagrams in solving real-world problems across diverse sectors.
Common challenges and solutions
Challenges in using fishbone diagrams
While fishbone diagrams are valuable tools, they are not without challenges. One typical obstacle is incomplete cause identification. Teams may overlook significant factors due to limited brainstorming or narrow focus areas. Another common issue is category overlap, where causes are placed in multiple categories, leading to confusion and redundancy. These challenges can hinder the effectiveness of the diagram and compromise the analysis.
Solutions and best practices
To overcome these challenges, teams should employ several strategies. For comprehensive cause identification, include team members from different departments in the brainstorming process. This ensures a broad range of perspectives and reduces the likelihood of missing critical causes. To address category overlap, establish clear definitions for each category before starting the analysis. This clarity helps in appropriately categorising causes and minimises redundancy. Additionally, regular reviews of the diagram during the analysis process can help identify and rectify any overlaps or omissions, enhancing the diagram’s overall effectiveness.
FAQs
How do fishbone diagrams differ from other problem-solving tools?
Fishbone diagrams make it easier to see all possible causes of a problem by sorting them into clear categories. This visual organisation helps teams spot patterns and connections.
How can I use fishbone diagrams for personal problems?
Create categories relevant to your personal challenge, such as daily habits, environment, and relationships. Then list potential causes under each category to understand what’s affecting your situation.
What software tools can assist in creating fishbone diagrams?
Microsoft Visio offers professional templates, while Lucidchart and Canva provide user-friendly online options with drag-and-drop features.
How often should a fishbone diagram be revisited?
Review your diagram monthly, when new problems arise, or when you make major changes to your process or team.
Are there any limitations to using fishbone diagrams?
Fishbone diagrams work well for identifying causes but may not show how strongly each cause affects the problem. They also rely on your team’s knowledge to be effective.

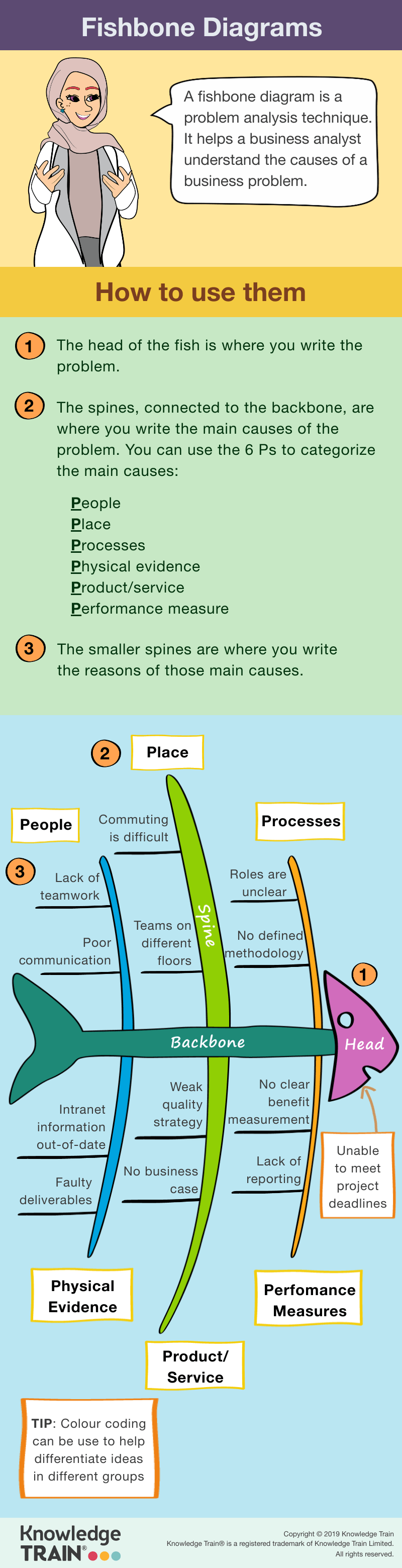

Infographic
